USB總線，100MHz采樣，16路數字波形發生器

生產廠商： 迪陽公司專賣 產品型號： GP-24114
產品簡介： 16路數字波形發生器卡，8路雙向控制，加邏輯分析儀。

售價：￥19800

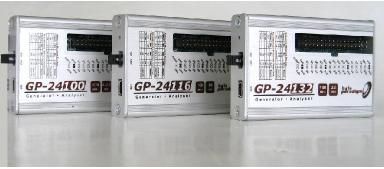

型號	數據/圖形帶寬	最大采樣頻率	嵌入式內存
GP-24100	16 bits	100 MHz	8 MByte
GP-24116	16 bits	100 MHz	16 MByte
GP-24132	16 bits	100 MHz	32 MByte

GP-24116 is a USB 2.0 high speed digital patter generator, logic analyzer and bi-directional protocol (SPI/I²C) host adapter.

GP-24116 is the mid-range of GP Series GP-241xx devices.

GP-241xx devices differ by the included embedded memory buffer.

With its plain 16 MByte embedded memory buffer, 100 MHz operation on all 16 digital lines, and a sustained USB throughput up to 30 MByte/s, the GP-24100 is a powerful general purpose and evolutive PC-based solution that ideally complements your lab equipment for digital electronic system design, test and debug.

With its ADWG / pattern generator mode of operation, the GP-24116 allows you to generate extended depths of arbitrary digital stimuli, directly from a PC through a USB connection.

Conversely, the Analyzer mode of operation transforms the GP-24116 into a simple logic analyzer to collect and analyze digital data.

With the GP-24116, generating and collecting digital data to stimulate and analyze electronic systems have never been easier. Moreover, the provided 8PI Control Panel software offers free rich graphical, scripting (TCL/tk) and programming (C/C++) interfaces to automate tasks and make a bridge between your own programming environment and a real hardware prototype.

USB 2.0 high speed device
100 MHz maximum frequency on all signals
16 MByte embedded memory
16 bi-directional data lines for data transfer from / to the PC
8 bi-directional control lines for clocking (in/out), triggering, automatic sequence generation
Maximum sustained throughput on USB: 30 MByte/s
Up to 100 MByte data depth per run
I/O voltage from 1.8V to 3.3V
Automatic streaming on USB when data depth exceeds embedded memory (8 MByte)
ADWG (pattern generator), Analyzer and JTAG modes of operation included
SPI / I²C exerciser / analyzer modes of operation included

Number of digital channels	16
Max. frequency	100 MHz
Embedded memory	16 MByte
Maximum throughput	200 MByte/s
Maximum sustained throughput	30 MByte/s
Maximum data depth per run	100 MByte
